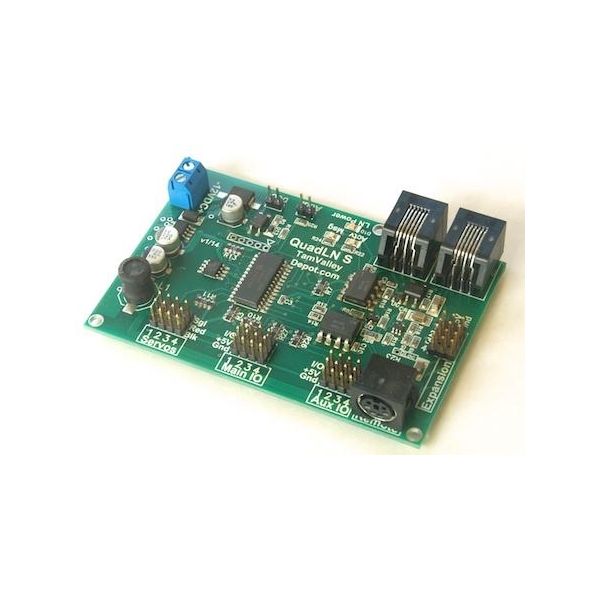

QLN010 SERVO DRIVER & LOCONET DECODER

More Views

QLN010 SERVO DRIVER & LOCONET DECODER

Availability: In stock (2)

£75.50

QLN010 SERVO DRIVER & LOCONET DECODER


QuadLN  Versatile, programmable servo driver and Loconet decoder



  • 4 or 8 (using expansion port) Servo Drives


Loconet - Compatible

OR
Description

Details

QLN010 SERVO DRIVER & LOCONET DECODER

QuadLN Versatile, programmable servo driver and Loconet decoder

  • 4 or 8 (using expansion port) Servo Drives
  • 2-position (turnouts, gates) or 3-position (semaphore) servo control
  • 8 programmable input/outputs - each i/o can be both an external input and a servo position indicator output at the same time
  • 4 expansion outputs can be used to drive 5V relay boards or to drive 4 more servos and to drive up to 24 LEDs using the optional Signal Board.
  • Inputs can be pushbuttons, toggle switches or external logic from other boards
  • Local inputs can be locked out with Loconet command or with a local switch
  • Positional feedback
  • Cascade to other loconet devices
  • Programmable routes
  • Remote on cable for servo alignment and to set LED brightness on Signal Board
  • RapidStart takes up slack and starts points moving immediately even when using slow speeds
  • Fully integrated with JMRI (version 3.8 and later)
  • Switching power supply efficiently uses 7.5 to 18V DC

Loconet - Compatible
