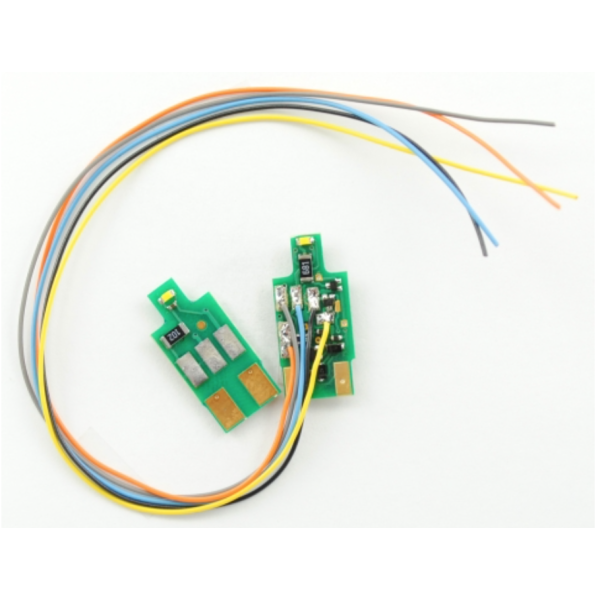

The CN is a N-scale drop-in decoder for older Atlas, Kato, and Intermountain locomotives.
The CN is a N-scale drop-in decoder for older Atlas, Kato, and Intermountain locomotives. Examples include the following:
Atlas:
Kato:
Intermountain:
See the Installations Page for a full list of compatible engines!
Want to learn more about "Classic N" decoders from TCS? Click Here
Provides superior slow speed control and high performance under load.
Super-quiet motor control for "buzz" free motor performance.
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Allows you to make custom acceleration and deceleration curves.
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Choose from 20 separate user-programmable lighting effects!
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Feature which prevents accidental/unwanted programming while activated.
Fully compatible with Airwire™ operation.
Configure custom speed curves and set speed limits.
| Features & Specification | Interface Type
Drop-In
Dimensions (L x W x H): .783”x.361”x.101” or 19.9mm x 9.17mm x 2.6mm
Scale: N Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 80 mA
Onboard LEDs: 2
|
|---|---|
