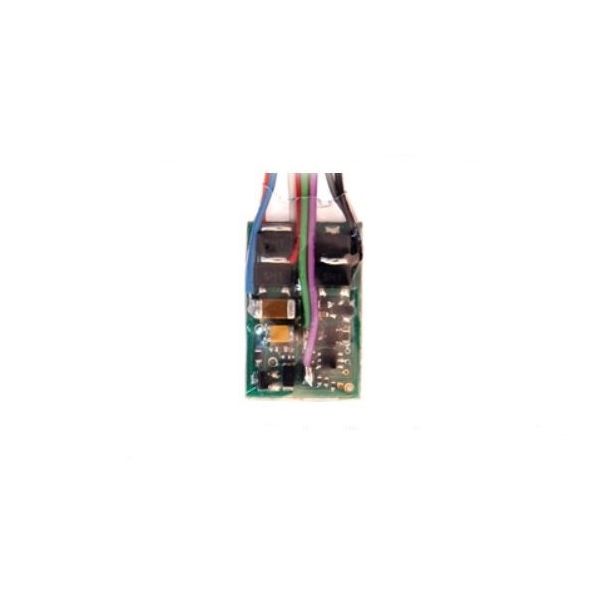

The M4-KA is a small form factor hard-wire decoder with 4 lighting functions for HO and N scale installations. This decoder is designed for installations where space is limited.
The M4 is a small form factor hard-wire decoder with 2 lighting functions for HO and N scale installations. This decoder is designed for installations where space is limited.
Provides superior slow speed control and high performance under load.
Super-quiet motor control for "buzz" free motor performance.
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Allows you to make custom acceleration and deceleration curves.
This decoder can be used with 12 Volt bulbs.
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Choose from 20 separate user-programmable lighting effects!
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Feature which prevents accidental/unwanted programming while activated.
Fully compatible with Airwire™ operation.
Configure custom speed curves and set speed limits.
| Features & Specification | Interface Type
Hard-Wire
Dimensions (L x W x H): 0.587" x 0.365" x 0.135" or 14.91mm x 9.27mm x 3.43mm
Scale: HO Scale N Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 4
Function Rating: 100 mA
12V Outputs
4
|
|---|---|
