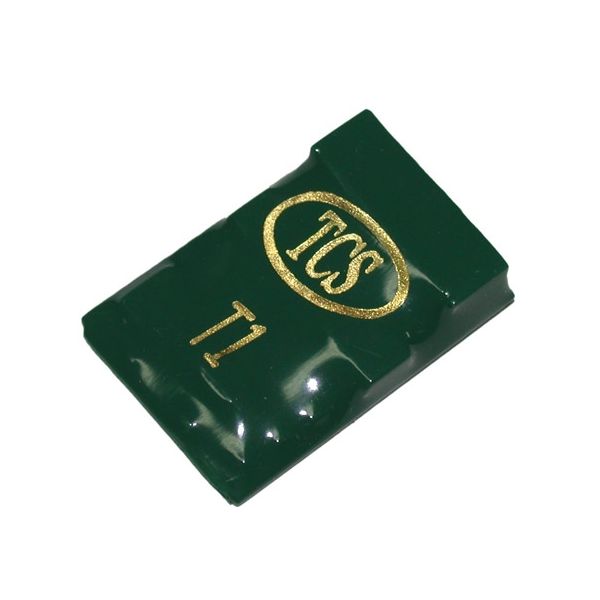

The T1 is a multi-purpose HO-scale decoder. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug.
Includes wire harness.
The T1 is a multi-purpose HO-scale decoder. This decoder may be hard-wired or plugged directly into any locomotive with a 9-pin JST plug. This decoder is also available with adapter harnesses with 8-pin NMRA plugs installed. See the "Variants" page for more options.
Note: The Green and Purple wires on this decoder are not used. The T1 is a 2-function decoder, but still uses the 9-pin JST which includes the Green and Purple wires.
Additional Note: These decoders are a popular choice for use on turntables or other applications where precise motor control is necessary. The ability to set up button-controlled BEMF allows you to automatically and accurately step your turntable. See our programming guides in the literature section for more information on Button-controlled BEMF.
Provides superior slow speed control and high performance under load.
Super-quiet motor control for "buzz" free motor performance.
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Allows you to make custom acceleration and deceleration curves.
This decoder can be used with 12 Volt bulbs.
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Choose from 20 separate user-programmable lighting effects!
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Feature which prevents accidental/unwanted programming while activated.
Fully compatible with Airwire™ operation.
Configure custom speed curves and set speed limits.
| Features & Specification | Interface Type
Direct-Plug (9-Pin JST)
Dimensions (L x W x H): 0.969" x 0.661" x 0.193" or 24.61mm x 16.79mm x 4.9mm
Scale: HO Scale
Continuous/Peak: 1.3/2.0 Amp
Total Functions: 2
Function Rating: 100 mA
12V Outputs
2
|
|---|---|
