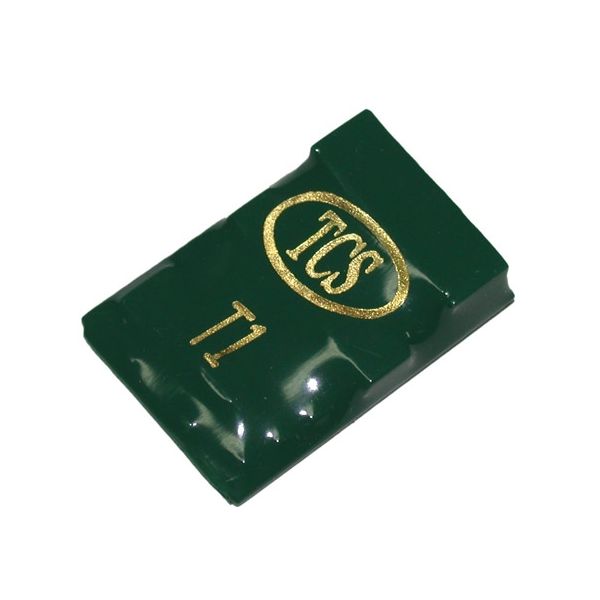

The T1 is a multi-purpose HO-scale decoder. The T1A does not include any harnesses. This decoder may be used to directly plug into a locomotive with a 9-pin JST, or onto an adapter harnesses.
The T1 is a multi-purpose HO-scale decoder. The T1A does not include any harnesses. This decoder may be used to directly plug into a locomotive with a 9-pin JST, or onto one of our adapter harnesses.
Note: The Green and Purple wires on this decoder are not used. The T1 is a 2-function decoder, but still uses the 9-pin JST which includes the Green and Purple wires.
IMPORTANT NOTE: The T1A decoder is identical to the T1 decoder, but does not include a harness! The T1A can be plugged directly into a locomotive's 9-pin connector, or used with any of our Harness Options.
Provides superior slow speed control and high performance under load.
Super-quiet motor control for "buzz" free motor performance.
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Allows you to make custom acceleration and deceleration curves.
This decoder can be used with 12 Volt bulbs.
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Choose from 20 separate user-programmable lighting effects!
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Feature which prevents accidental/unwanted programming while activated.
Fully compatible with Airwire™ operation.
Configure custom speed curves and set speed limits.
| Features & Specification | Interface Type
Direct-Plug (9-Pin JST)
Dimensions (L x W x H): 0.969" x 0.661" x 0.193" or 24.61mm x 16.79mm x 4.9mm
Scale: HO Scale
Continuous/Peak: 1.3/2.0 Amp
Total Functions: 2
Function Rating: 100 mA
12V Outputs
2
|
|---|---|
