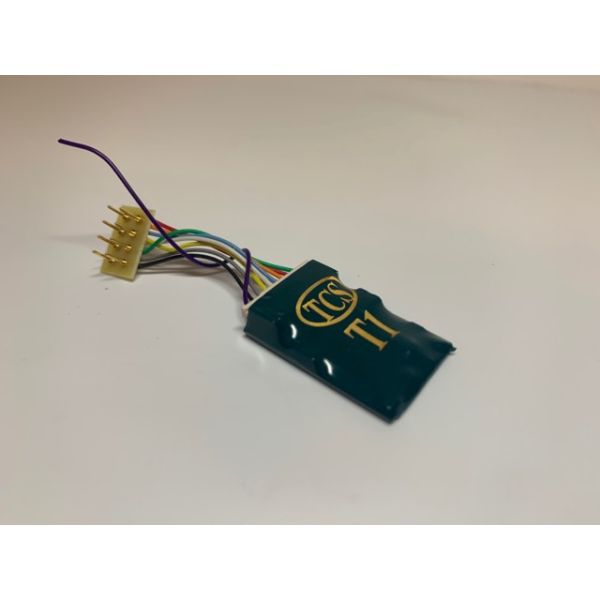

The T1 is a multi-purpose HO-scale decoder. The T1P-UK decoder comes with an included ~3.5" (~75mm) long harness which is terminated with a 8-Pin NMRA plug.
The T1 is a multi-purpose HO-scale decoder. The T1P-UK decoder comes with an included ~3.5" (~75mm) long harness which is terminated with a 8-Pin NMRA plug rotated 90 degrees from the standard orientation. This allows the decoder to fit better in certain applications, especially European-manufactured locomotives.
Note: The Green and Purple wires on this decoder are not used. The T1 is a 2-function decoder, but still uses the 9-pin JST which includes the Green and Purple wires.
Back EMF Load Compensation:
Provides superior slow speed control and high performance under load.
Quiet Drive:
Super-quiet motor control for "buzz" free motor performance.
DC Mode:
Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
Variable Momentum:
Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support:
This decoder can be used with 12 Volt bulbs.
Function Remapping:
Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects:
Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness:
Configure multiple different brightness levels for your LED's or incandescent bulbs.
Decoder Lock:
Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible:
Fully compatible with Airwire™ operation.
User-Loadable Speed Tables:
Configure custom speed curves and set speed limits.
